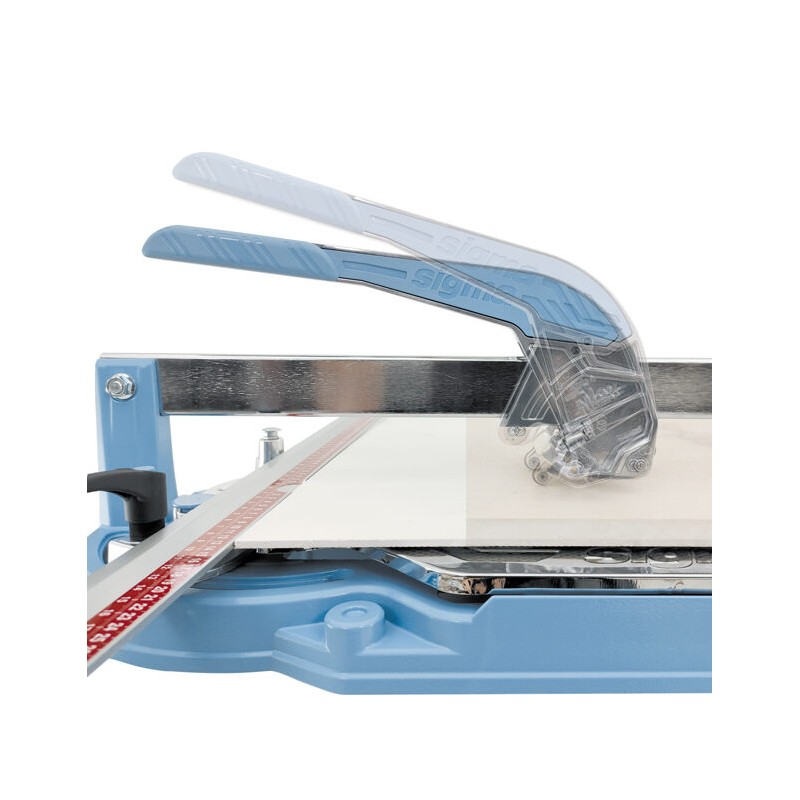

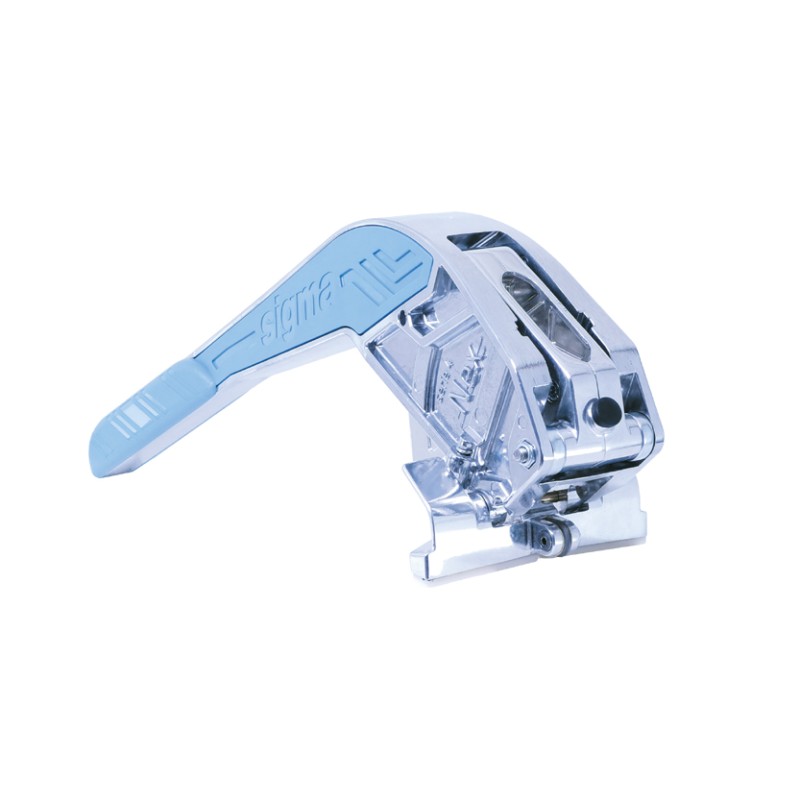

The change from scoring to breaking position is achieved by a small vertical movement of the hand-grip.

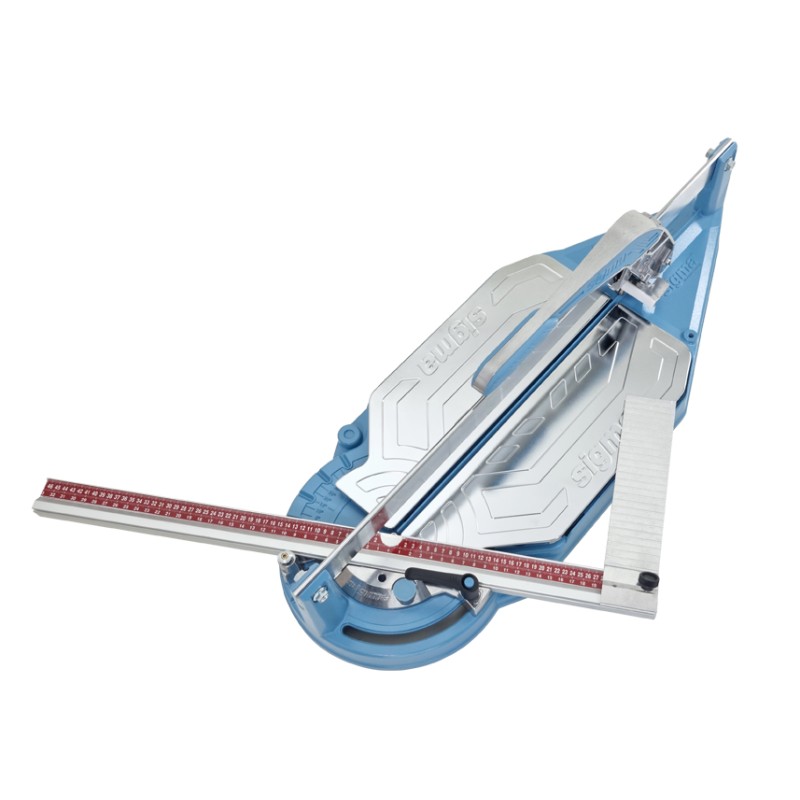

Featuring a large tile support table and swivelling measurement bar which supports the tile, it can rotate 45° in both directions and is pivoted at the centre of the cutting line, allowing the real measurement of the piece to be cut to be obtained.
A 45° second measurement scale gives the length of the diagonal and the rapid positioning button makes it easier to set to standard angles far quicker.
Pushing away from the lateral stop measurement bar rather than pushing to it, allows a much stronger scribe mark on the material, which in turn allows particularly thick or difficult materials to be easily cut, with the added advantage of the lateral stop measurement bar being conveniently close to the operator.
Precision, practical use and low weight are the main characteristics of Sigma tile cutters. Suitable for cutting all types of commercially available tiles.
Made from high-resistance aluminium alloy and steel for great rigidity. The special shape of the grip allows tiles to be cut at any point.
Plastic fittings on the base of the breaker, to prevent marks on the material being cut.
Supplied with a scoring wheel that is a long life and bearing mounted made from tungsten carbide.

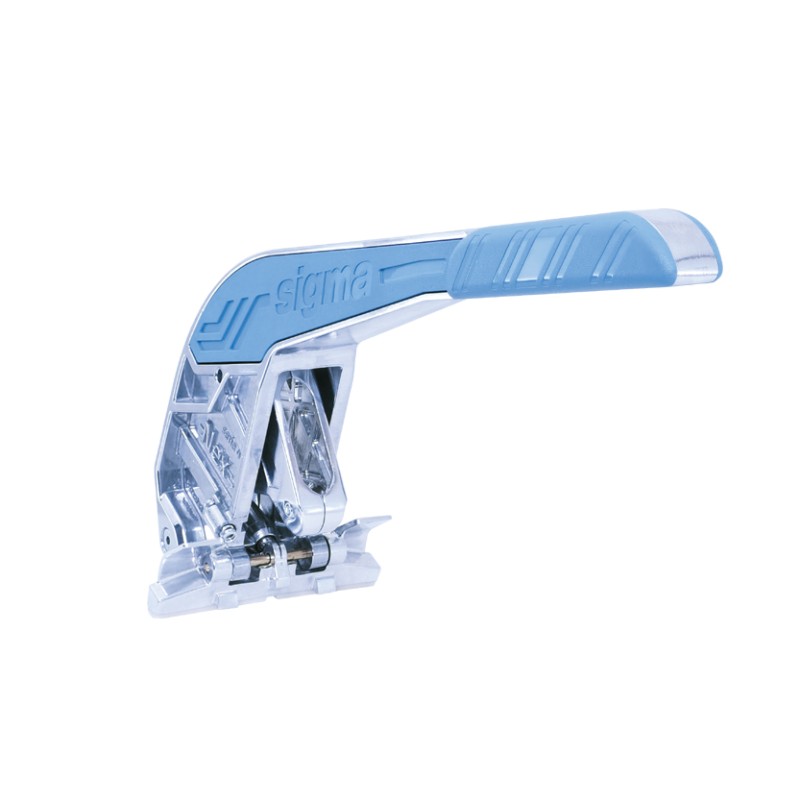

The tile is snapped by simply pressing down with the breaking feet near the edge of the tile.
Series 4 Features

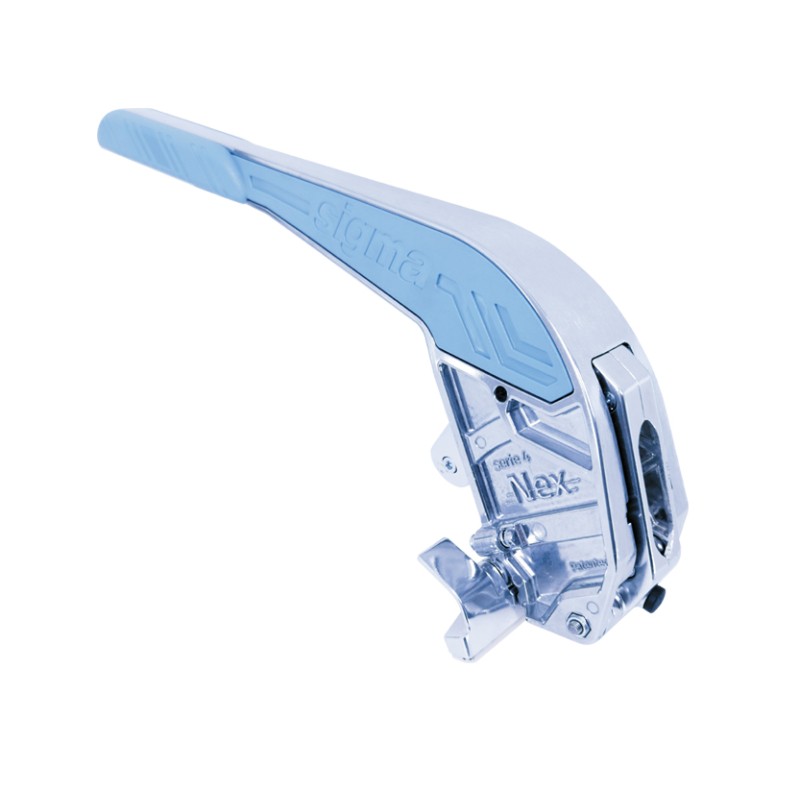

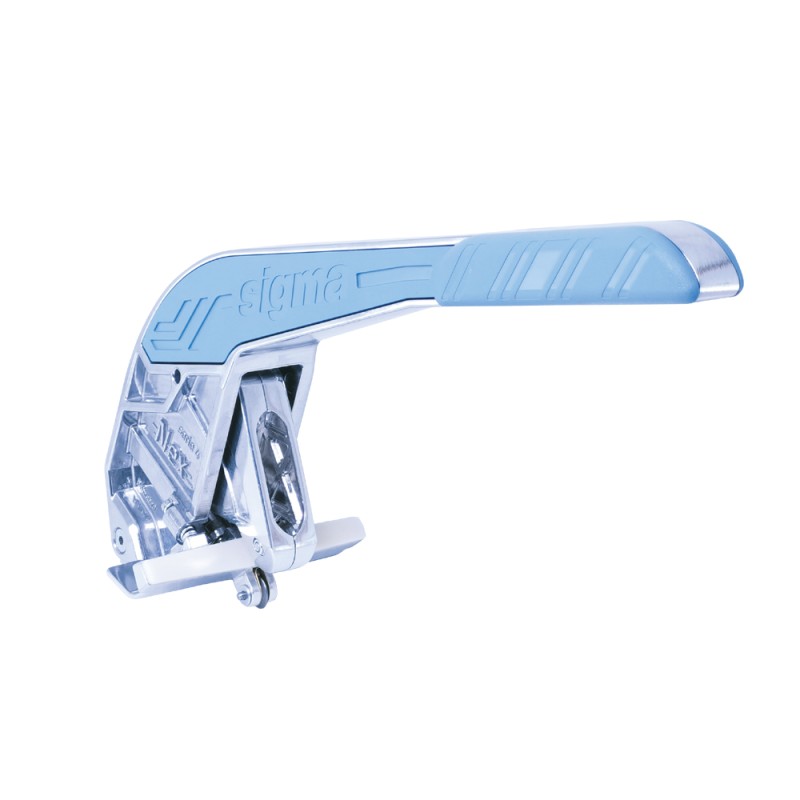

Ergonomic Handles - Ergonomic handles with full ball bearing slide.

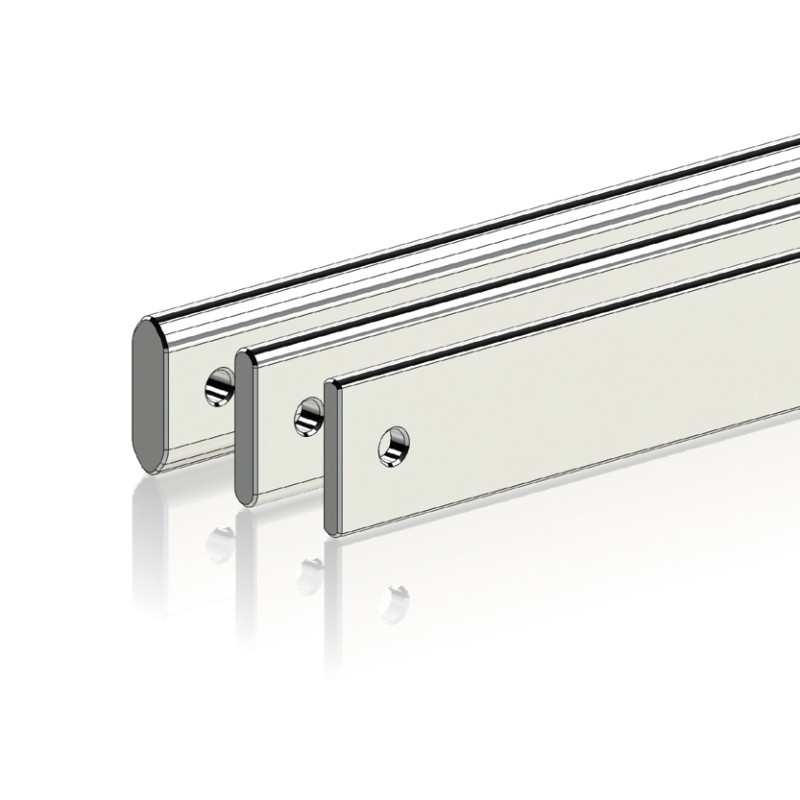

Machined Guides - Extremely robust sliding guides for a perfectly straight cut over time.
For all thicknesses - Cutting all thicknesses without adjustment.
Robust Structure - Aluminium structure, obtained from a single casting for maximum strength and lightness.

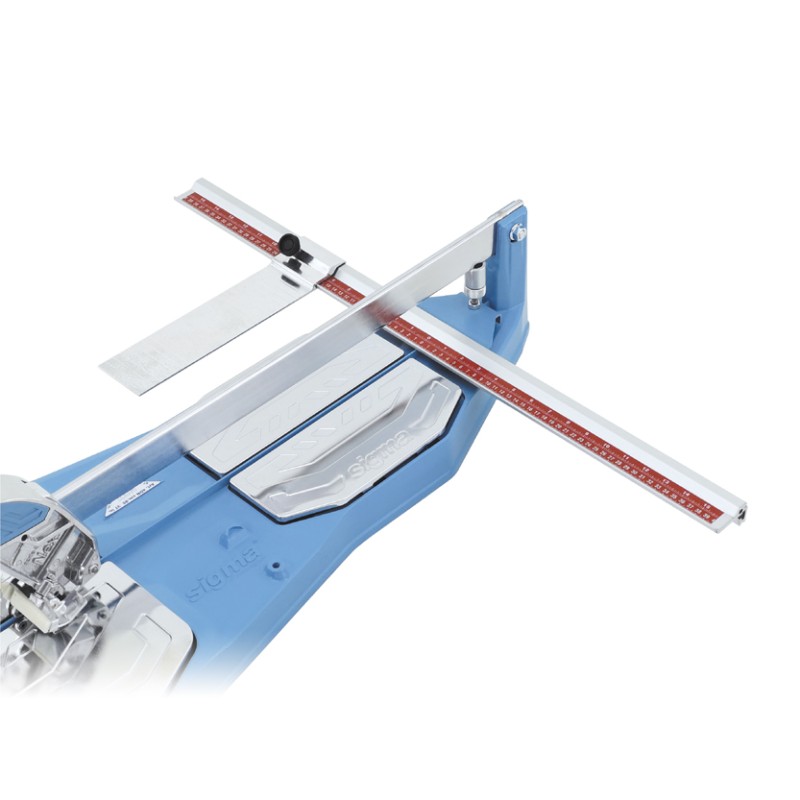

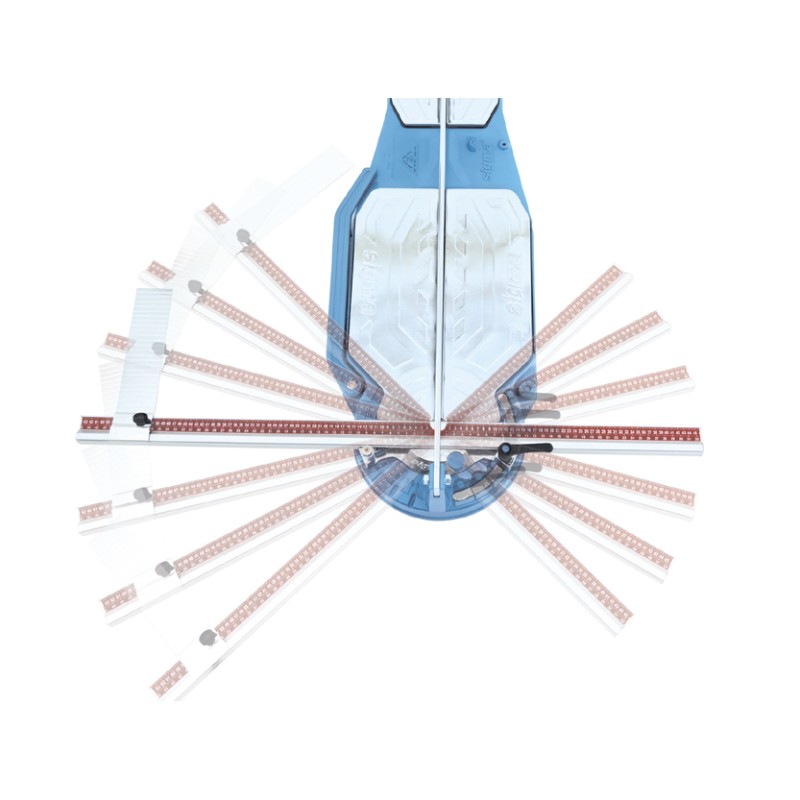

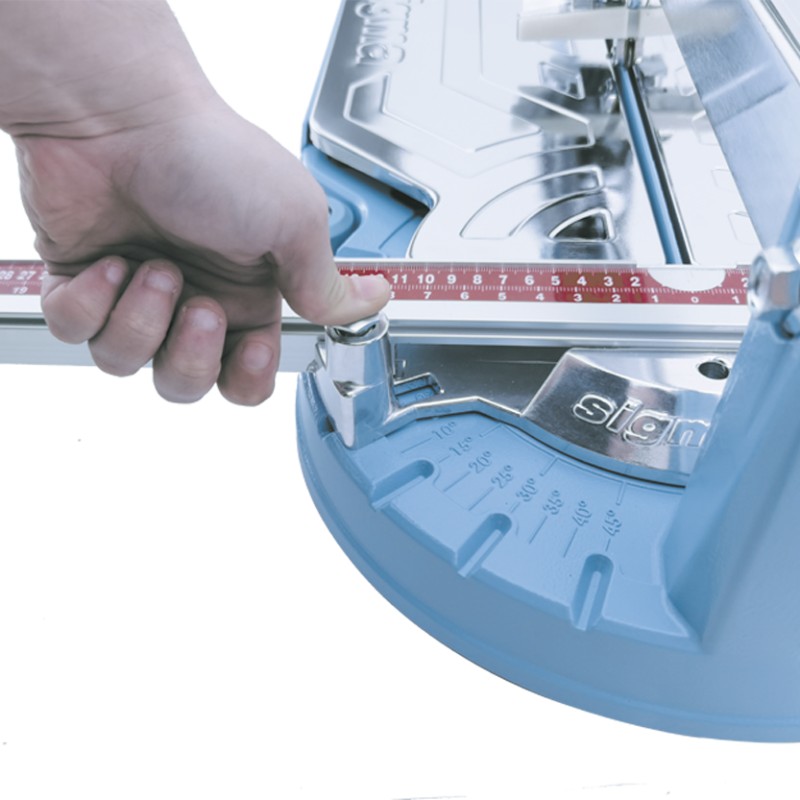

Metric Bar - The metric bar is pivoted in the centre of the cutting line, swivelling +45° 0° -45° and always close to the operator.

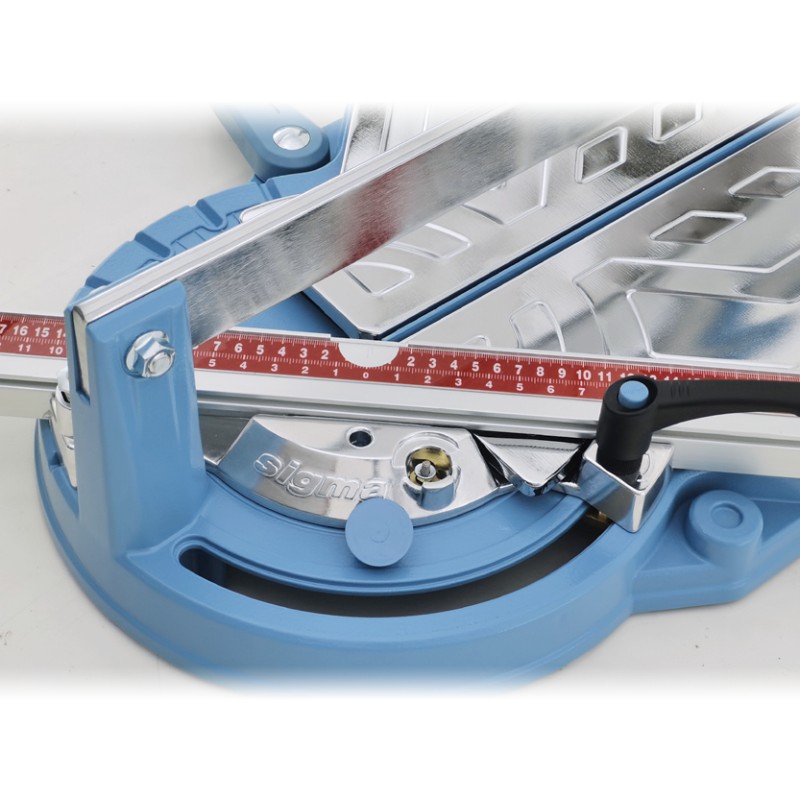

Cutting angle adjustment button - Adjustable button for quick positioning of the metric bar at the most commonly used angles

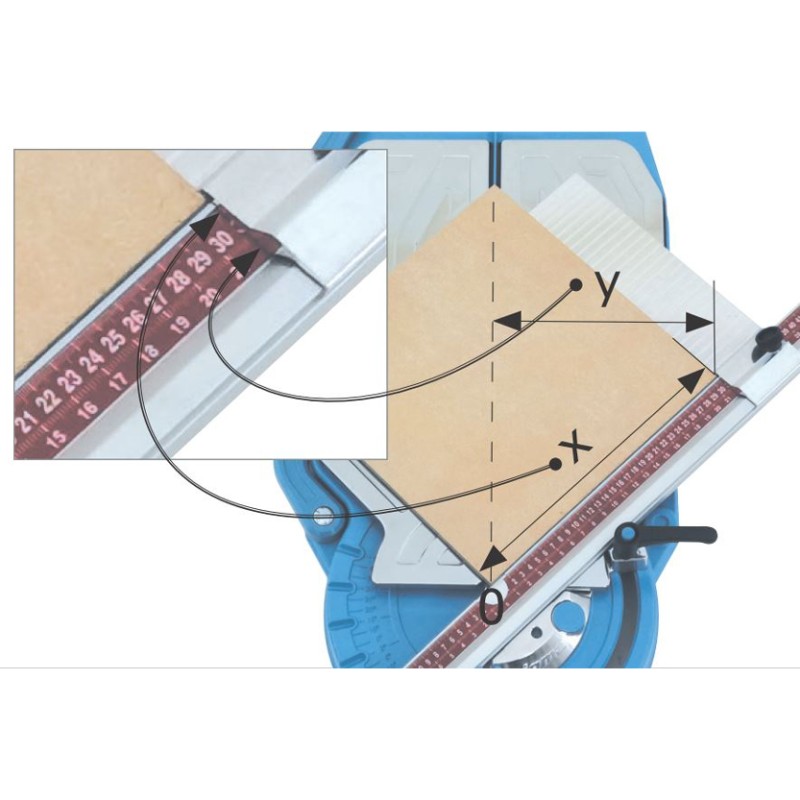

Diagonal measurement patented system - The metric ruler allows measurement of the side and diagonal.

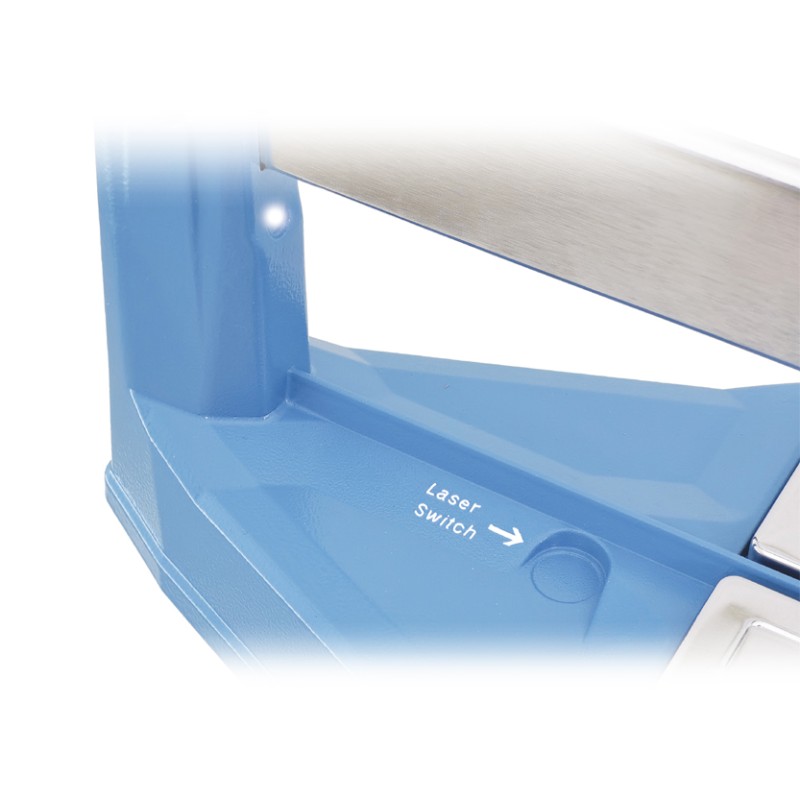

Cutting line lighting - Provision for mounting Positioning Laser

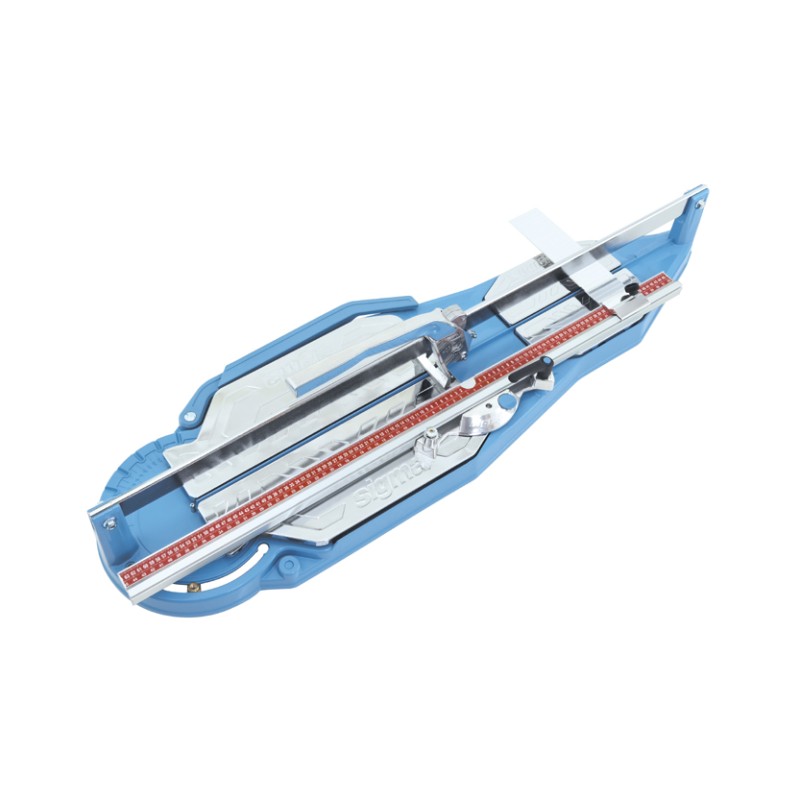

Reduced dimension - Space is reduced during transport by positioning the metric bar along the base.
Sprung supports - The sprung supports can be opened freely for perfect support of large tiles.
Scoring wheel compartment - Container for scoring wheel replacement.
Steel pin – Metric bar pivoted in centre on steel pin
Front measurement - Allows measuring on both right and left (410 - 0 - 410 mm) for narrow and long tile cuts.
