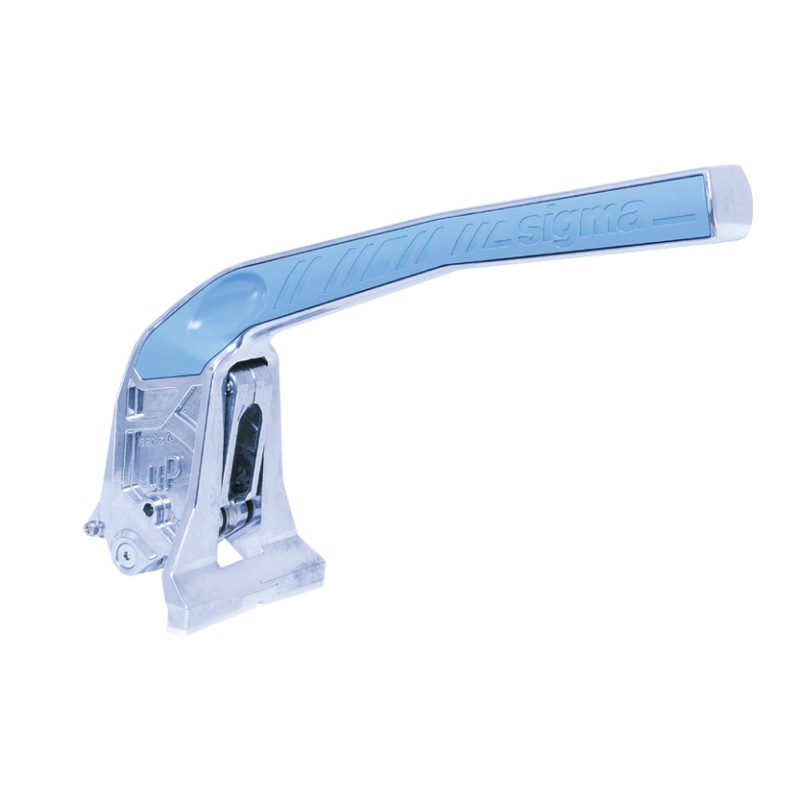

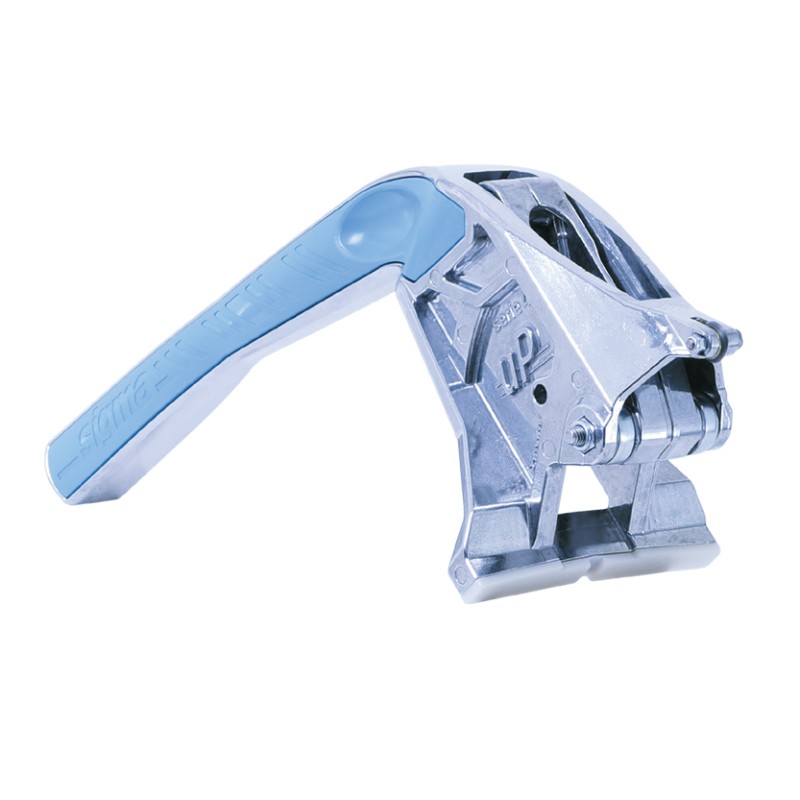

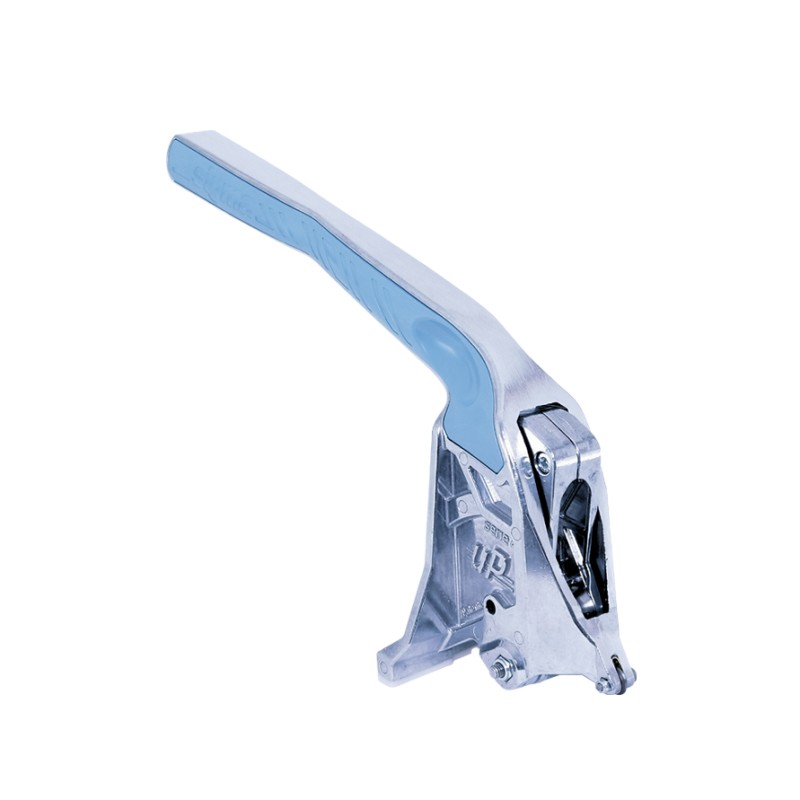

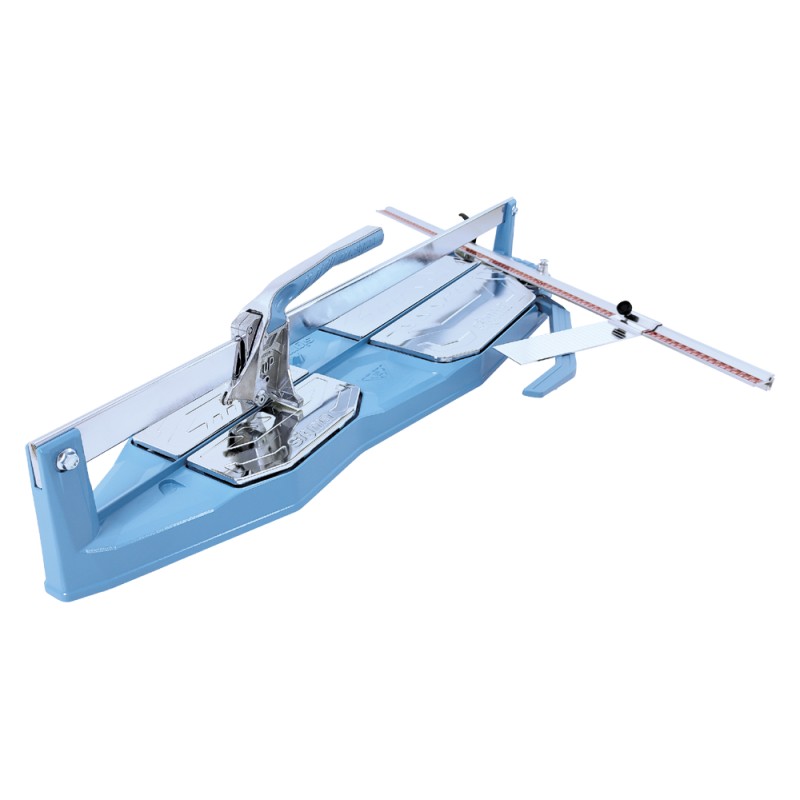

The "UP" handle on this machine is designed for pulling incisions that are quick and easy for cutting tiles.
An ergonomically shaped handle specific for pulling incision.
The scoring wheel diameter of 12mm is always visible from the operator's side. It also features a CNC milled wheel holder and an anti-friction metal shell to eliminate friction and lateral wear on the scoring wheel. Scoring wheel is also available in TIN coated version. (Art.14UT)
The sliding carriage is wear-free, thanks to 3 double-row ball bearings that guarantee long-term precision.
Automatic steel compensator for adjusting the slide preload on the rail. There is also an automatic system that holds the handle up to facilitate the insertion of the tile.
A wide splitting foot of 100mm.
Interchangeable anti-mark protection protects the basement from impact during the scoring.
The handle is mounted to the slide carriage with two thrust ball bearings for maximum precision.
Most spare parts available.
Series 4 Features
Ergonomic Handles - Ergonomic handles with full ball bearing slide.

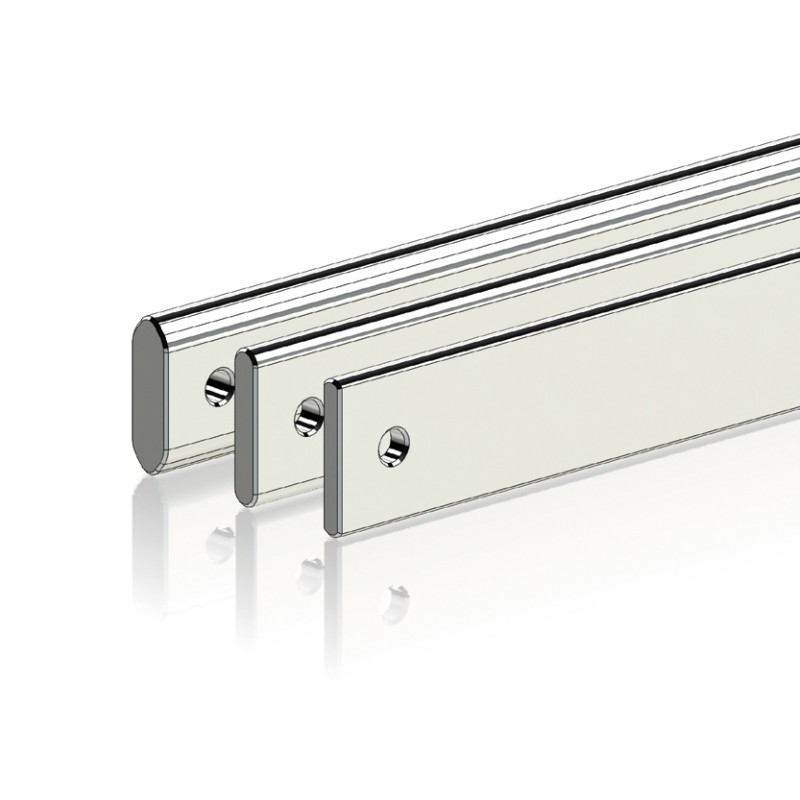

Machined Guides - Extremely robust sliding guides for a perfectly straight cut over time.
For all thicknesses - Cutting all thicknesses without adjustment.
Robust Structure - Aluminium structure, obtained from a single casting for maximum strength and lightness.

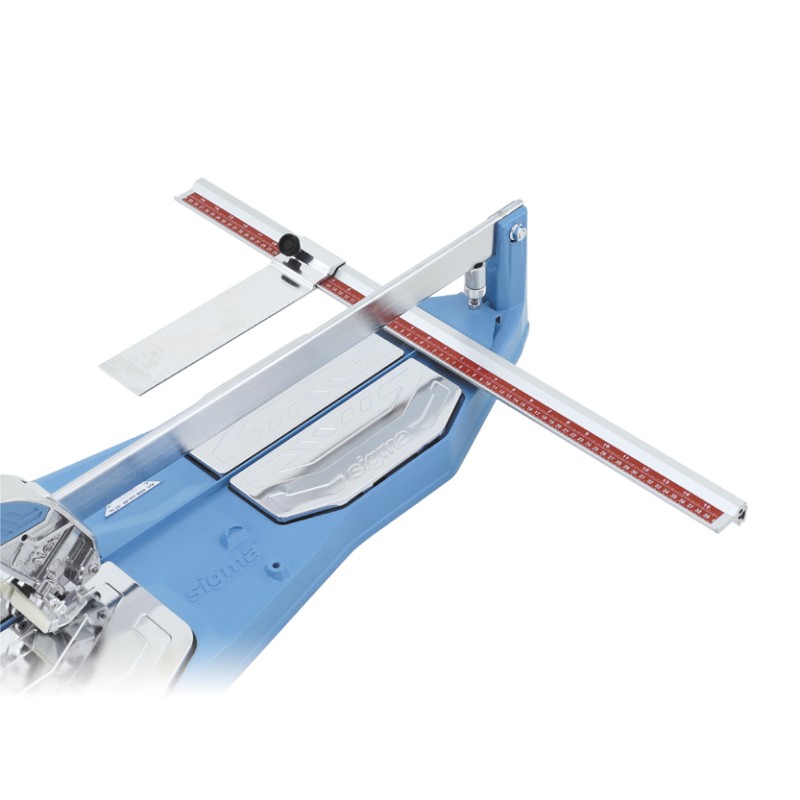

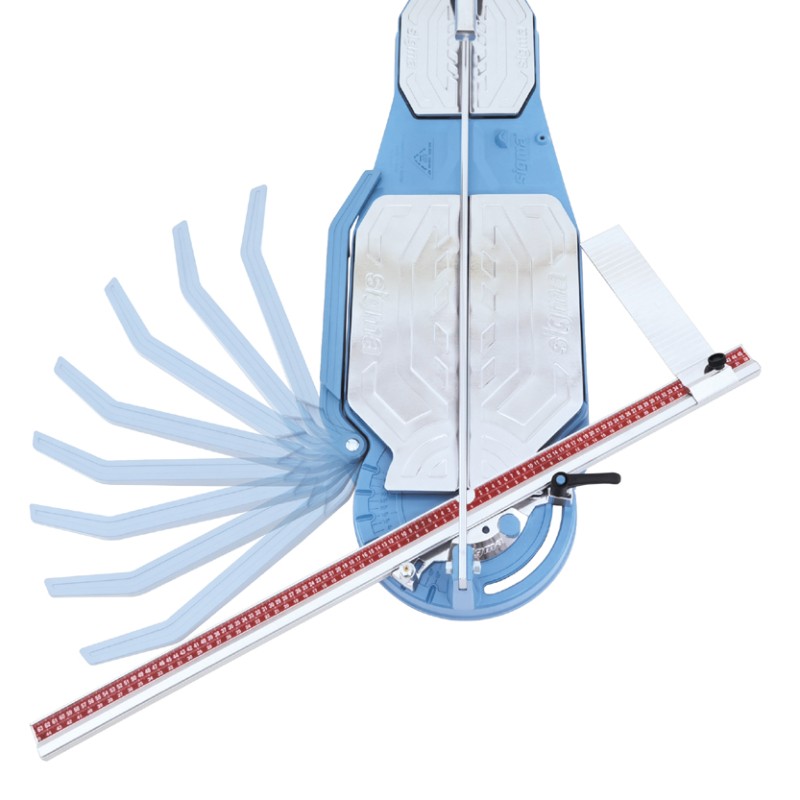

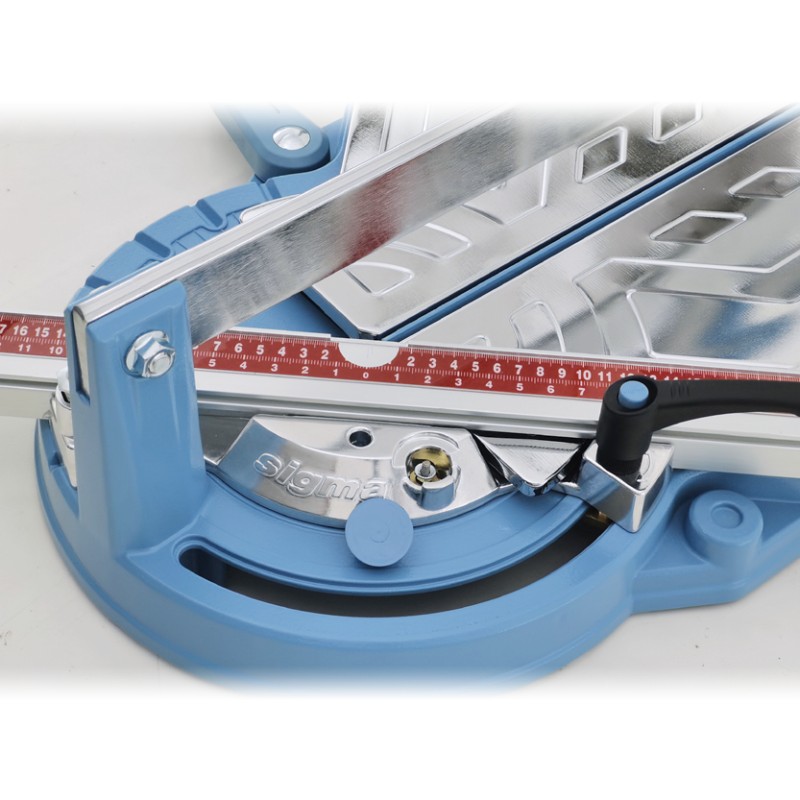

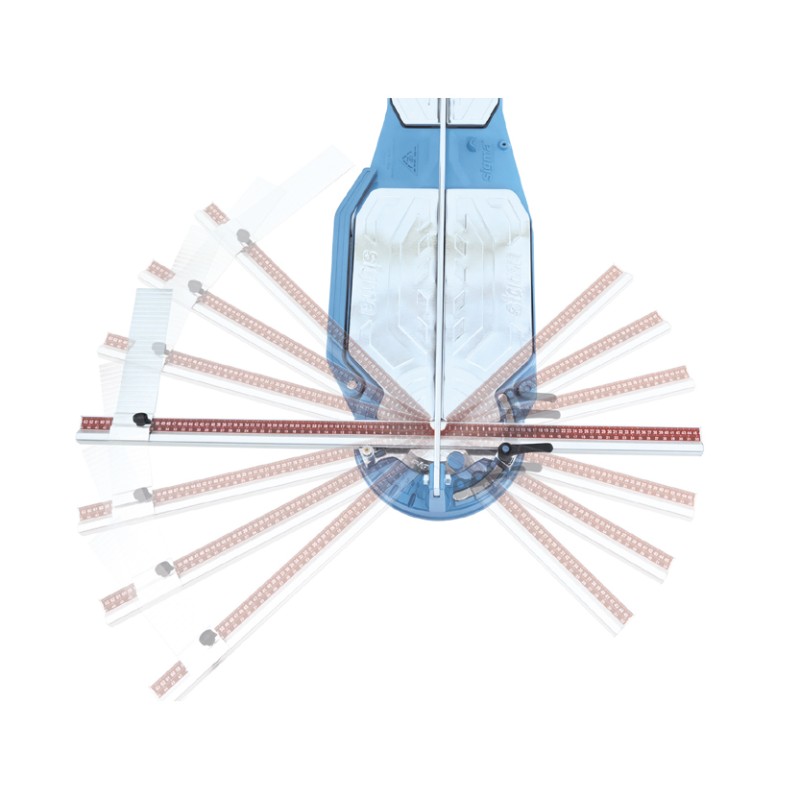

Metric Bar - The metric bar is pivoted in the centre of the cutting line, swivelling +45° 0° -45° and always close to the operator.
Cutting angle adjustment button - Adjustable button for quick positioning of the metric bar at the most commonly used angles

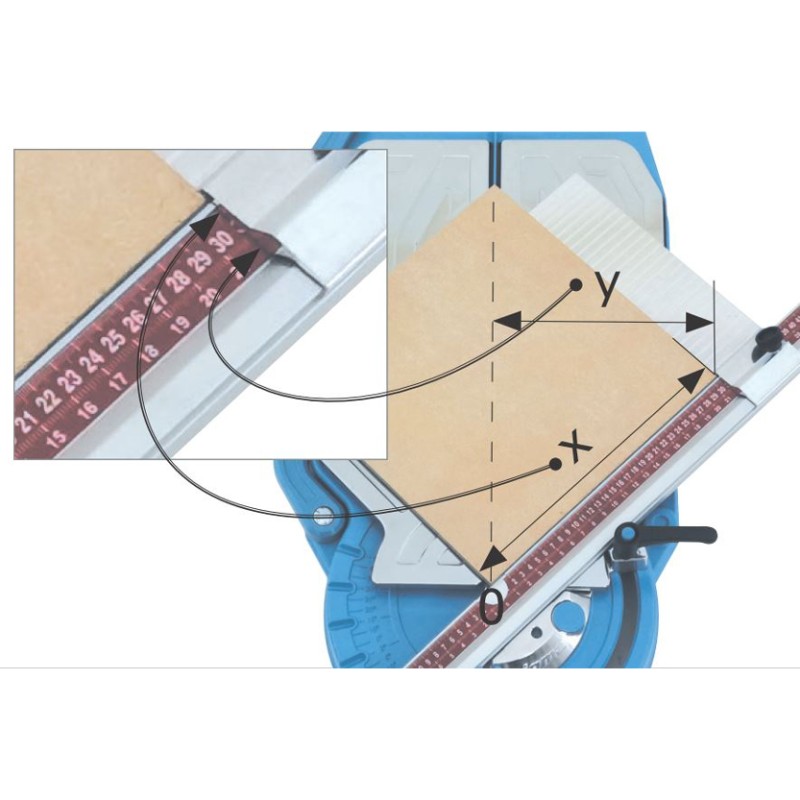

Diagonal measurement patented system - The metric ruler allows measurement of the side and diagonal.

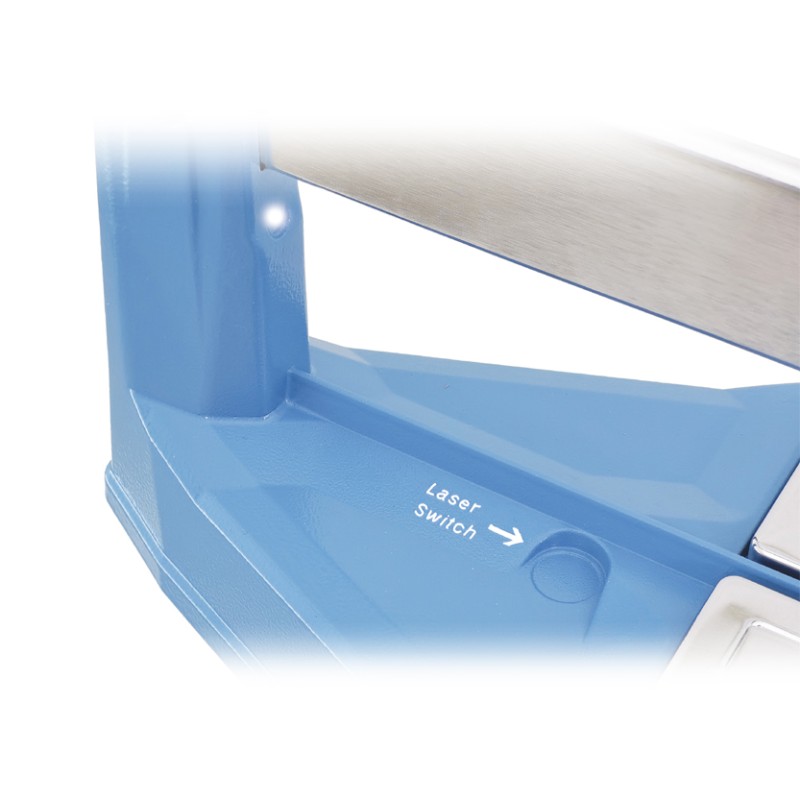

Cutting line lighting - Provision for mounting Positioning Laser

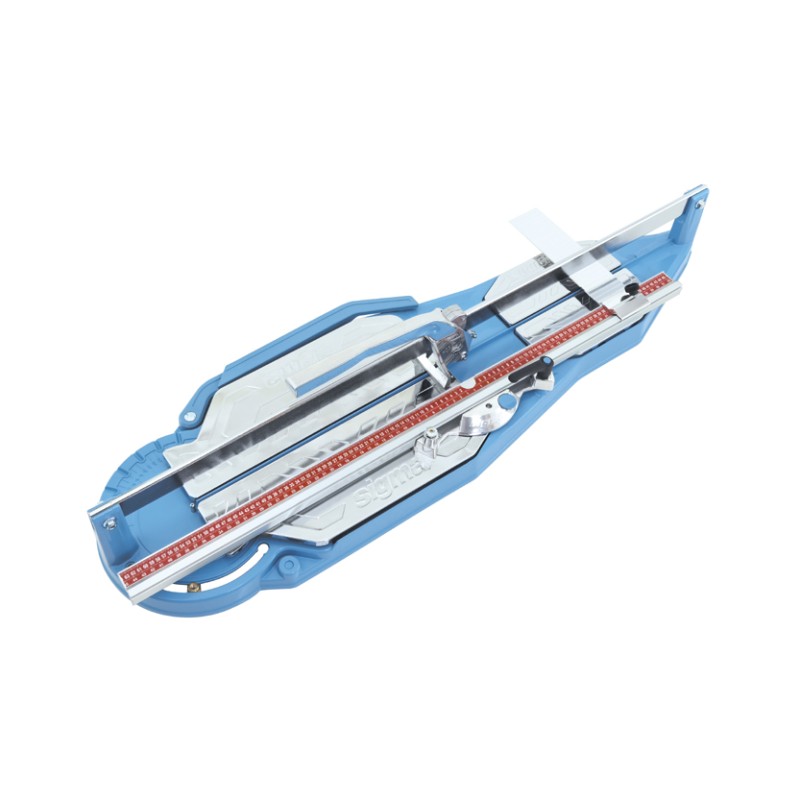

Reduced dimension - Space is reduced during transport by positioning the metric bar along the base.
Sprung supports - The sprung supports can be opened freely for perfect support of large tiles.
Scoring wheel compartment - Container for scoring wheel replacement.
Steel pin – Metric bar pivoted in centre on steel pin
Front measurement - Allows measuring on both right and left (410 - 0 - 410 mm) for narrow and long tile cuts.
