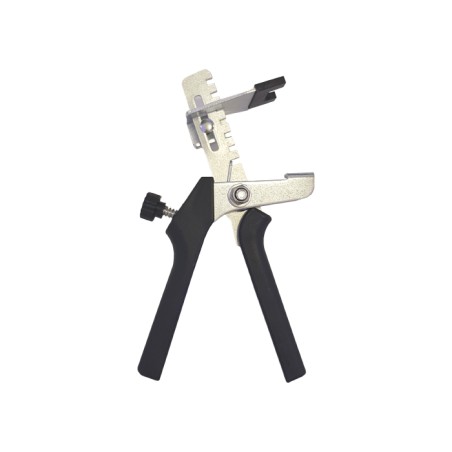

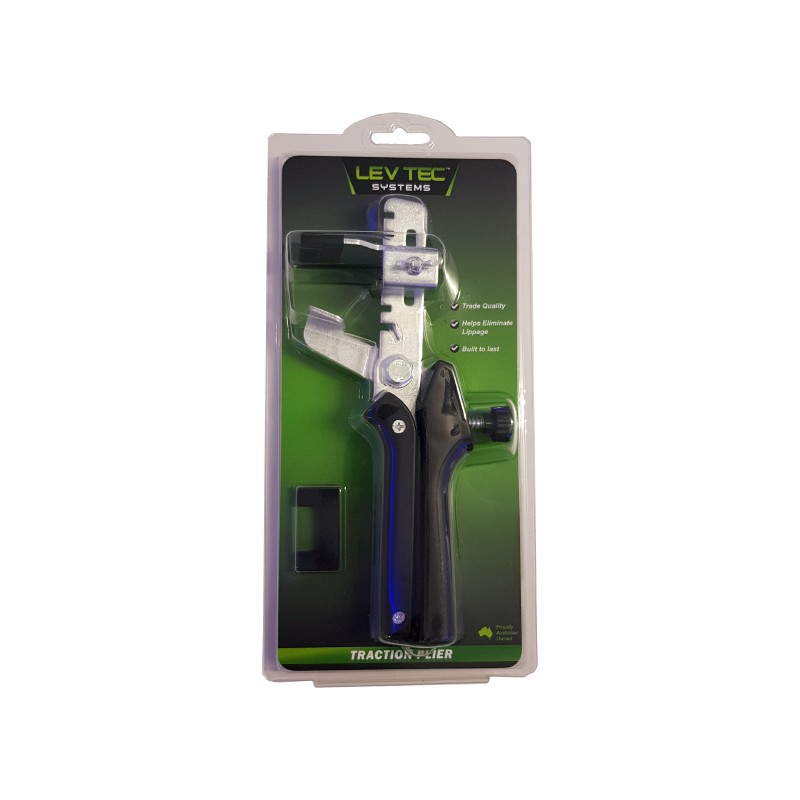

Levtec Levelling System Pliers
  • Levtec Levelling System Pliers
  • Levtec Levelling System Pliers
  • Levtec Levelling System Pliers

Levtec Levelling System Pliers

£21.22 inc VAT

per box

100% secure payments
Quantity
box

TK60032

LEVTEC - THERE IS NO SIMPLER WAY TO ENSURE PERFECT TILING!

The range includes clips, wedges and pliers which lock tiles in place to prevent slumping during drying, while also removing substrate imperfections. Their interlocking design holds the tiles together, while eliminating the effects of adhesive shrinkage and gravity issues. This unique system will enable professional tilers to set floor and wall tiles without lippage, until the adhesive is fully dry.

The clips are simple and quick to use thanks to their beveled clip edges, with a strong and flexible design which does not suffer from accidental breakages. Unlike other clip and wedge-based levelling systems, the breakpoint is below the base plate, allowing total expansion once removed. In addition, the reinforced reusable wedges are designed to provide complete accuracy, so every tiling project benefits from a faultless surface.

Standard clip designed for tiles with a thickness between 3 and 12mm - 1.5mm tile spacer.



HOW TO CREATE A PERFECT FINISH

Step 1

Spread the tile adhesive and lay the tile, then position the Levtec clips beneath the edge of the tile. The clip will act as a 1.5mm spacer when pressed firmly against the tile.

Step 2

Set the adjacent tile firmly into the adhesive and butt against the Levtec clip. Then slide the Levtec wedge through the clip until both tiles are firmly levelled.

Step 3

Once the tiles are locked in place, the clips and wedges need to stay in position until the adhesive sets. The joing width can be adjusted slightly during setting, without disrupting the height of the tiles.

Step 4

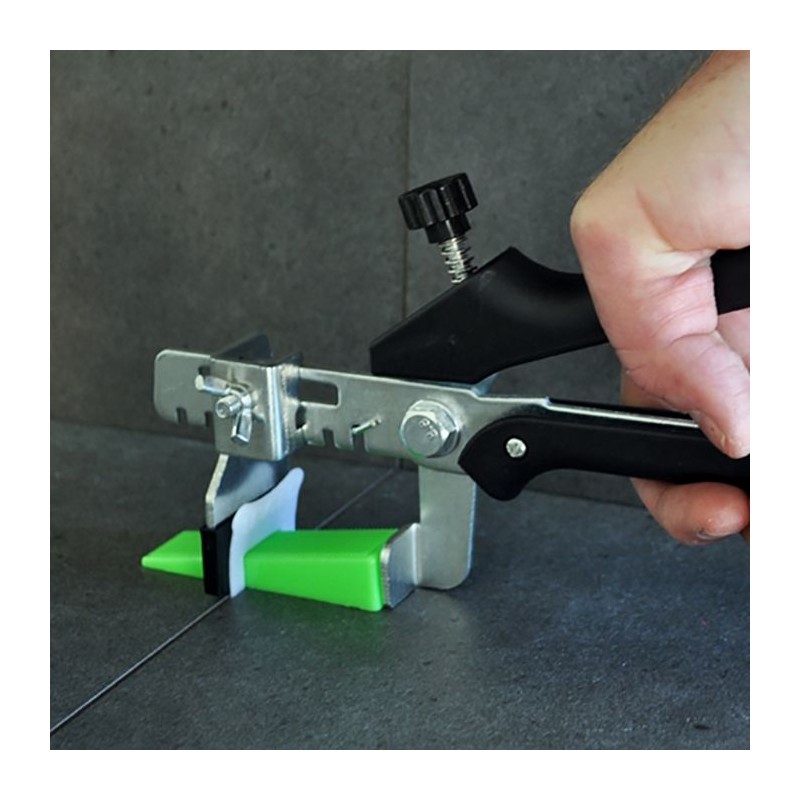

Once the adhesive is set, the wedges can be removed using a rubber mallet. The clips should be hit in the direction of the tile joint, where they will dislodge from the breakpoint below the tile, ready for grouting.

TK60032

Download

Levtec User Guide

Download (865.6KB)

Levtec Product Brochure

Download (2.33MB)

Levtec Product Focus

Download (486.05KB)
